Jeep Light Bar Installation & Off-Road Lighting in Louisville, KY
Updated October 2026LED light bars, ditch lights, pods and auxiliary lighting installed on your Jeep at your home or work, on evenings and weekends. If you've been searching for light bar installation near me, we come to you within about 30 miles of Louisville, including Southern Indiana, with no trip fee. Noah, the owner, wires every light through a fuse and relay and checks it before he leaves.
Light Bar Installation Done Right Starts With the Wiring
Most of the lighting problems you'll ever have come from the wiring, not the light. A good LED bar wired to a toggle switch with no relay, spliced with tape, will flicker, drain the battery or melt a switch. A modest set of pods wired properly will work every time you flip the switch for years.
We install lighting so it looks factory and works every time: proper wiring, relays and switches, routed cleanly and sealed against the weather. If you can see our wires with the hood closed, we didn't finish the job.
We install bolt-on lighting, not custom-fabricated mounts.
Jeep Lighting Options: Light Bars, Ditch Lights, Pods & More
With the wiring standard set, here's the lighting we put on Jeeps most. Each one lights a different part of the road or trail, so most setups combine two or three. Lighting a pickup or SUV? Our truck accessories page covers trucks.
LED Light Bars
Straight or curved bars mounted in the bumper, the grille area or above the windshield. Bars throw the most light down the trail. A bumper-mounted bar is the cleaner choice for most Jeeps: less wind noise, less glare off the hood, and easier to keep legal on the road. If you're adding a winch bumper, we'll plan the light mounts with it on our armor and winch installation page.

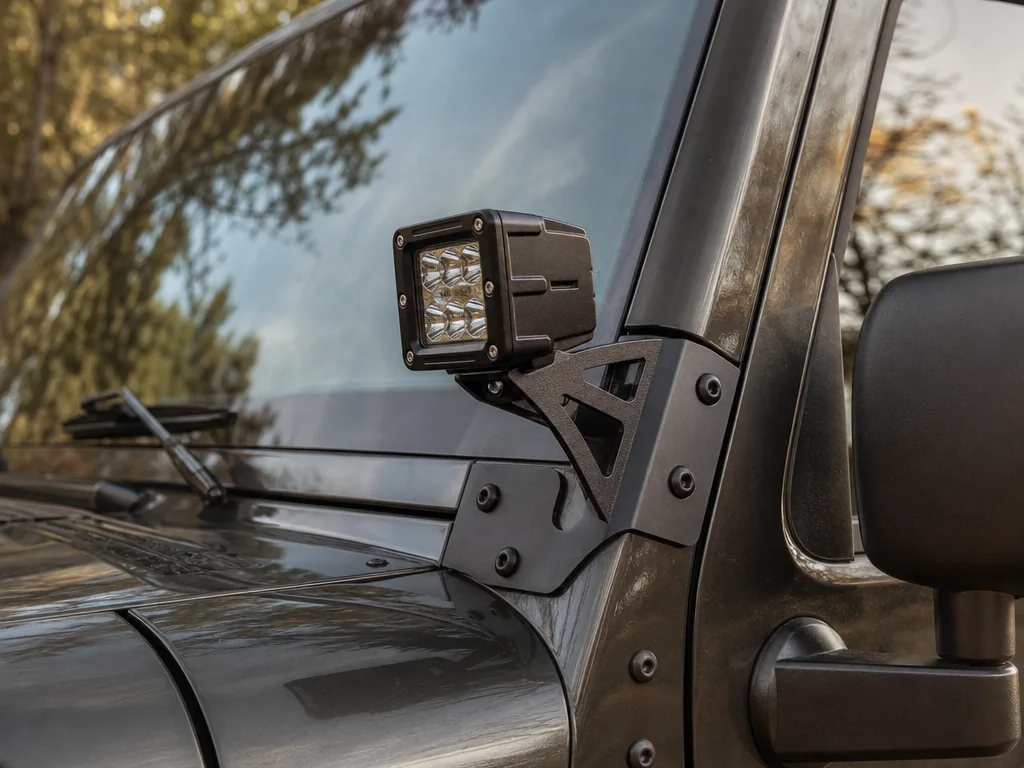

A-Pillar Ditch Lights
A pair of pods mounted at the base of the windshield, aimed out to the sides. Ditch lights show the edges of the trail and the turns ahead, which a forward bar can't do.
Bumper and Cube Pods
Compact pods in the front bumper for close-in light, or as a lighter alternative to a full bar. Pods are a good first lighting upgrade because they add a lot of useful light for little power and weight.
Auxiliary and Fog Lights
Amber or white auxiliary lights aimed low and wide for fog, rain and snow. On many Jeeps, these replace or add to the factory fog lights.
Rock Lights
Small sealed lights under the wheel wells that light up the ground right around the tires when you're picking a line at night.
What Better Off-Road Lighting Adds — and Where It Stops
Once you know the options, it helps to know what lighting will and won't do for you.
What it adds:
- Seeing farther down the trail and around the turns
- Seeing the edges of dark back roads, and the deer standing next to them
- Better visibility in fog and rain with low, wide amber light
- A safer night on the trail when you're working on the Jeep or recovering it
Where it stops:
- Most off-road lights aren't meant for public roads and have to stay off on the street
- Roof bars can reflect off the hood, whistle at highway speed and glare inside the cab
- Cheap lights often put out far less than the box says, and fail once water gets in
- Every light you add is electrical load, so the wiring and battery have to be up to it
The honest version: buy the light for how you actually drive. A Jeep that's mostly on the road and gravel gets more from good pods and amber fog lights than from a 50-inch bar.
How to Choose Off-Road Lighting — A Louisville Jeep Owner's Guide
Knowing where lighting stops makes the buying decision simpler. Here's how we help Jeep owners choose.
Start With How You Drive
If you mostly drive dark rural roads and the occasional trail, start with ditch lights and amber fog or pod lights. If you wheel at night, a bumper bar and ditch lights are the core setup. Build out from there instead of starting with the biggest bar you can fit.
Beam Pattern Matters More Than Lumens
A spot beam reaches far down a straight trail but lights almost nothing to the sides. A flood beam lights wide and close but doesn't reach. A combo bar does some of both. Most Jeeps are best served by a mix: a spot or combo up front and wide beams at the corners. A huge lumen number on the box tells you little about where the light actually goes.
White or Amber
White light shows the most detail on a clear night. Amber cuts down the glare that bounces back off fog, rain, snow and dust, which is why it's popular for fog lights and low-mounted pods.
Brand Matters
We install Baja Designs, and their pods and bars hold up to water, vibration and years of use. Budget lights from online marketplaces often look the same in the photo but put out less light, fog up inside, and have no real warranty.
Plan the Switches
Decide where the switches go before anything is wired, so they're easy to reach and labeled. On Jeeps that already have factory auxiliary switches, we can often wire to those.
What Light Bar Installation Costs
With the lights chosen, the install cost comes down to time and parts. Lighting installs start at $120 for labor, the quote is free, and there's no trip fee inside our service area. Bigger setups are quoted at $120 an hour, and you know the price before any work starts. With no storefront or showroom to pay for, we keep the price down without cutting corners on the wiring. Here's what moves the total.
- How many lights and circuits. One pair of pods on one switch is a short job. A bar, ditch lights and fog lights on separate switches takes longer.
- Where the lights mount. Bumper and A-pillar mounts are quicker than routing wires above the windshield.
- Switches. Wiring to existing factory auxiliary switches is usually simpler than adding a new switch panel.
- The condition of the wiring already there. Fixing someone else's lighting install comes first, and takes time.
- Who supplies the lights. We can install lights you've bought, or order them for you from the same suppliers shops use. They usually arrive in 1–3 days, and Noah brings them to the install.
- Doing it with other work. Wiring lights during a bumper or winch install saves a second visit.

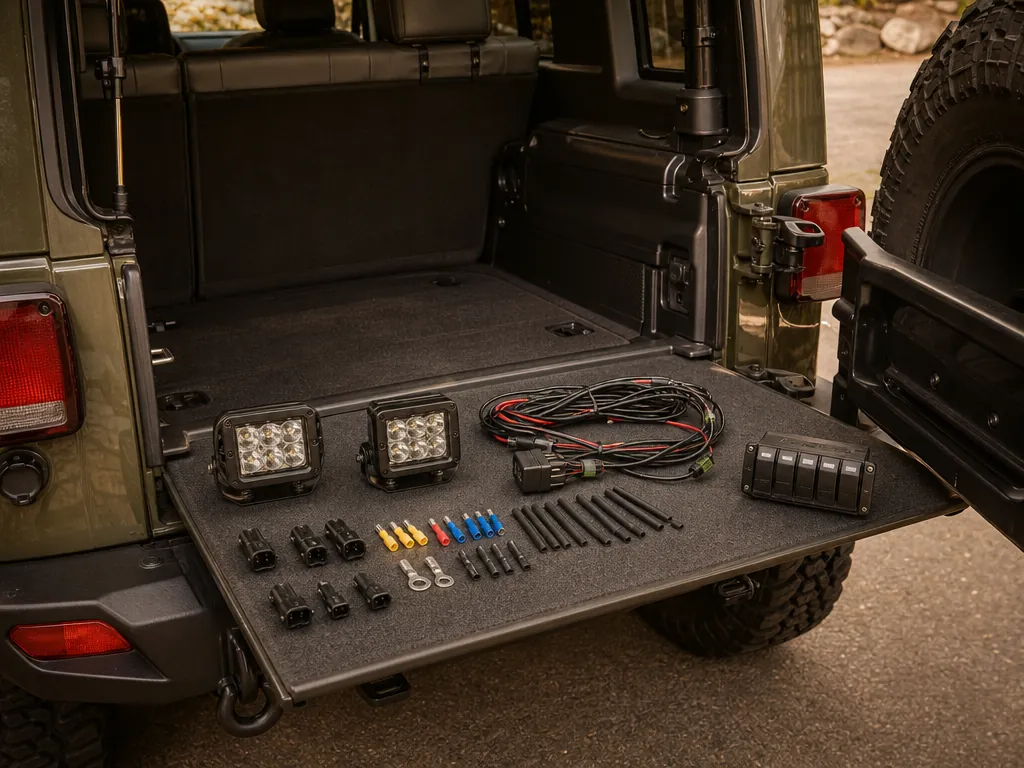

What Goes Into a Clean Light Bar Installation
The cost buys the part of the job you never see. Here's what goes into every install.
A Relay on Every Light
A relay is a heavy-duty switch that carries the light's full power, so the switch on your dash only sends a small signal. Without one, the dash switch carries the whole load, gets hot and can melt. Every auxiliary circuit we install has its own relay.
A Fuse Near the Battery
Each circuit gets a fuse sized for the light and mounted close to the battery. If a wire ever rubs through and shorts, the fuse blows instead of the wire burning. We don't tap into the factory fuse box for lights.
The Right Wire, Routed Away From Trouble
Wire is sized for the light's draw and the length of the run, then routed away from the exhaust, sharp edges and moving suspension parts. It's protected in loom where it passes through the engine bay, and it goes through the firewall in a sealed grommet so water stays out.
Real Grounds
Bad grounds are the most common cause of flickering lights. Each light gets a solid ground to clean, bare metal, not a painted bracket.
Sealed Connections
Every connection is sealed with weatherproof connectors or adhesive-lined heat-shrink. Tape and crimp-on splices let water and road salt in. The light works for a month, then quits when the connection corrodes inside the insulation.
Aim and Test
We aim each light on level ground so it lights the trail instead of the trees or the oncoming driver, then test every switch and every light before we leave.
Lighting Installation by Jeep: TJ, JK, JL, Gladiator & XJ
Those standards apply to every Jeep, but each model has its own mounting and wiring details.
Wrangler JL and Gladiator JT. Some trims came with factory auxiliary switches on the dash, which make for a clean, factory-looking setup. Newer electrical systems are sensitive to tapping into factory circuits, which is one more reason every light gets its own fused circuit.
Wrangler JK. A-pillar ditch lights and bumper pods are the most common setup. The JK's grille and bumper have plenty of aftermarket mounting options.
Wrangler TJ and XJ Cherokee. Simpler electrical systems, but often 20 years or more of someone else's wiring. We check the existing wiring and battery before adding load. If an older Jeep has electrical problems beyond lighting, we can track those down too; call first, since not every electrical job is a driveway job.
Each Jeep has its own page with the rest of what we do for it: the TJ and LJ, the JK and JL, the Gladiator and the XJ Cherokee.
4 Off-Road Lighting Install Mistakes — And How We Fix Them
Knowing the model details also makes it easier to spot the mistakes we see most on lighting someone else installed.
1. No relay, so the switch does all the work
A light bar wired straight through a dash switch is a melted switch waiting to happen.
How we fix it: a proper relay on every circuit, with the switch carrying only the trigger signal.
2. Tapping the fuse box with an "add-a-circuit"
Fuse taps are fine for a dash cam. They're not built for a light bar, and they can damage the factory fuse panel.
How we fix it: a separate fused feed from the battery for every auxiliary light.
3. Tape and cheap splices
Kentucky road salt and rain get into taped splices and corrode the wire inside, and the light dies a month later.
How we fix it: we cut out bad splices and replace them with sealed connections.
4. Lights aimed into oncoming traffic
Pods and bars aimed too high blind other drivers and light up the treetops instead of the trail.
How we fix it: every light aimed on level ground, with off-road lights wired to their own switch so they're easy to keep off on the road.
Off-Road Lighting Installation for Louisville Fog, Salt & Back Roads
Those mistakes cost more here than in a dry climate. River valley fog settles along the Ohio and its creeks on cool mornings and evenings. White light bounces back off it, and low amber light cuts through it. Once you're past the city, the roads in Oldham, Shelby, Spencer and Bullitt counties get dark fast, and deer near the shoulder are a real risk at dusk. Ditch lights that show the edges of the road earn their place there.
Winter is hard on lighting in a different way. Road salt and slush get into every connector and splice on the front of the Jeep. That's why we seal every connection and route the wiring up and away from the spray.
Kentucky law requires drivers to keep their lights from shining glare into an oncoming driver's eyes within 500 feet. Most off-road lights should stay off on public roads in Kentucky and Indiana. We wire them to their own switches so they're easy to turn off, and we can add covers to bars that aren't being used. We're not giving legal advice here; if you're unsure about a specific light, check your state's rules.
If you're looking for night runs and people to wheel with, start with our Louisville Jeep community page.
How Our Mobile Lighting Installation Works
Bringing the work to you means your Jeep stays home. Lighting installs happen right in your driveway or at your work, on evenings and weekends, with no drop-off to arrange.
- 01
Talk it through
Tell Noah how you drive and what you want to see better. He'll recommend the lights, the mounting spots and the switches, and tell you honestly if the lights you have in mind are worth installing.
- 02
Get a clear quote
A free quote before any work starts, by phone, from a few photos or with a quick stop at your house.
- 03
Mount and wire at your place
We mount the lights, run fused and relayed circuits, seal every connection and route the wiring so it's out of sight.
- 04
Aim, test and walk through
Every light aimed and every switch tested. We show you which switch does what before we leave.
- 05
Follow up
If anything flickers or quits, call us. The full process is on our how it works page.
Off-Road Lighting Installation Questions, Answered
Who does light bar installation near me in Louisville?
Heritage 4x4 Outfitters installs light bars, ditch lights, pods and auxiliary lights on Jeeps across Louisville and Southern Indiana, about 30 miles out. Noah, the owner, comes to your home or work and does the wiring himself, so you don't lose a day dropping your Jeep at a shop and waiting for a ride. Installs start at $120 for labor, the quote is free, and there's no trip fee inside our service area.
How long does a lighting install take?
A pair of pods or ditch lights is usually a short job. A bar plus ditch lights on separate switches takes longer. We'll tell you how long when we quote it.
Are off-road light bars legal to use on the road?
Most off-road lights shouldn't be on while you're driving on public roads. Kentucky law also requires you to keep glare out of oncoming drivers' eyes within 500 feet. We wire off-road lights to their own switches so they're easy to keep off on the street. Check your state's rules for anything specific.
Will extra lights drain my battery?
Not when they're wired correctly. LED lights draw far less power than old halogen lights, and with relays and fuses nothing runs unless the switch is on. If your battery is weak or old, we'll tell you before we add load. We also replace batteries; see our services page.
Do you install lights I already bought?
Yes. We'll install them to the same wiring standard, and tell you honestly if we think they won't hold up. Parts you supply carry their manufacturer's warranty, just like parts we supply, and our labor to install them carries our lifetime warranty. The details are in our terms and conditions.
Bumper light bar or roof light bar?
For most Jeeps, the bumper. A bumper bar is quieter, glares less off the hood and is easier to keep legal. Roof bars throw light farther over the hood but add wind noise and glare, and the wiring has to run up the windshield frame.
Do I need new lights after a lift?
Lifting a Jeep changes where the factory headlights point, so it's worth having them checked and re-aimed after a lift. Added pods and bars are aimed for your new ride height. Our lift kit installation page covers the rest of what changes.
Do you install RGB, underglow or interior lighting?
Our focus is lighting that helps you see: bars, pods, ditch lights and auxiliary lights. Ask us about anything else and we'll tell you honestly whether it's work we take on.
Off-Road Lighting Installation Across Louisville & Southern Indiana
We install lighting at homes and workplaces within about 30 miles of Louisville. That covers Jefferson, Oldham, Bullitt, Shelby and Spencer counties in Kentucky, and Clark and Floyd counties in Indiana.
Off-Road Lighting Brands We Trust
Lighting is only as good as what it's built to survive, so our go-to is Baja Designs. Their pods and bars hold up to water, mud and vibration. We'll also install the lights you've already chosen, wired to the same standard.
Ready to Light Up the Trail?
Bars, ditch lights or pods: one conversation with the owner, a free quote, installs from $120, and wiring done right in your driveway.
